A Manual D Duct Design Report documents the duct sizing calculations for a residential HVAC system, following the ACCA Manual D methodology. It records the friction rate calculation, total effective length of each duct run, and the sized diameter or dimensions for every supply and return run, so the installed duct system can actually deliver the airflow the equipment was selected for.

ACCA Manual D (3rd Edition), derived from the ACCA Manual J design airflow, IECC/state energy codesValid: One-off (no expiry)

No credit card required. Set up in 30 seconds.

Sample Manual D Report certificate

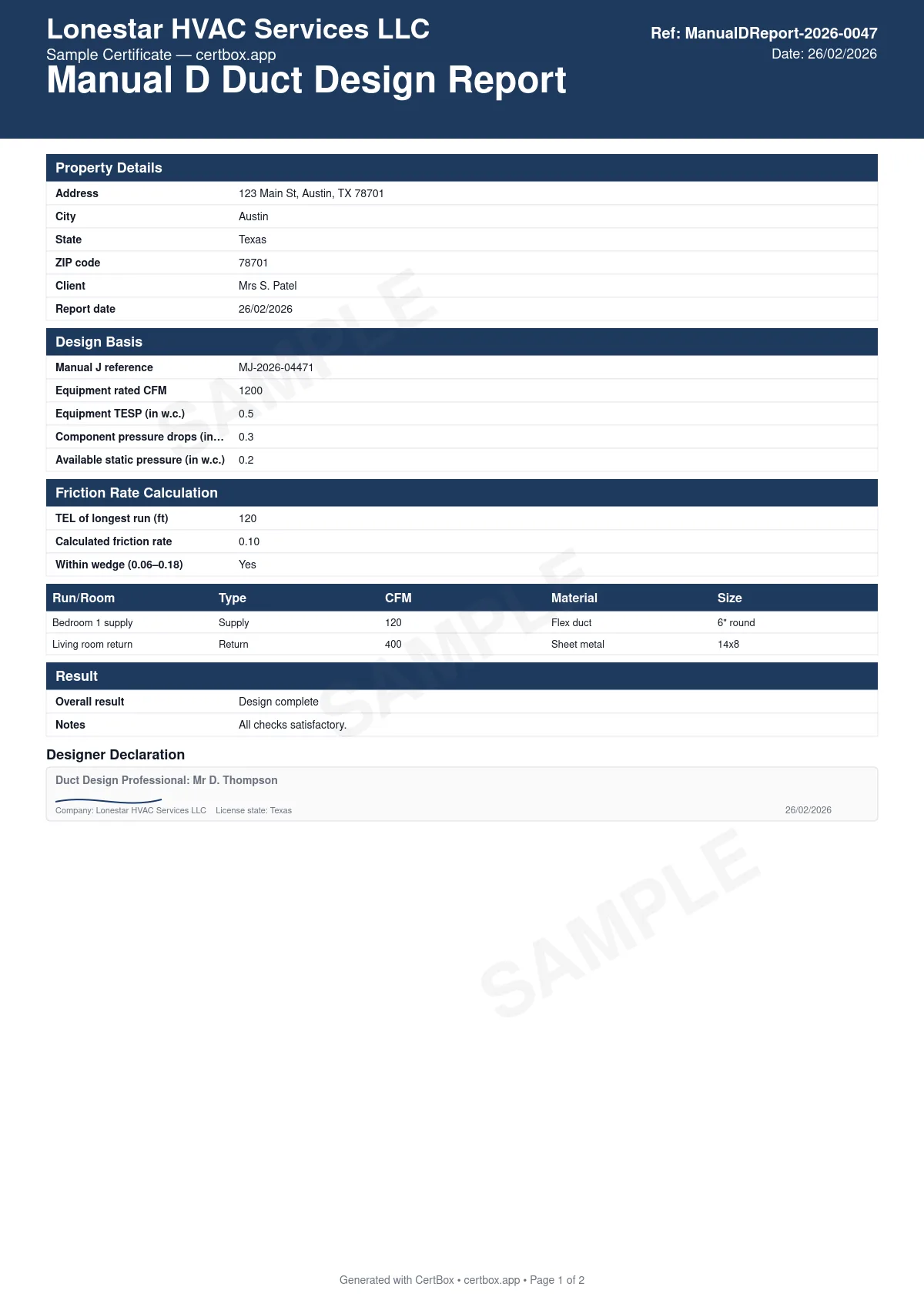

Sample Manual D Duct Design Report certificate created with CertBox, showing the professional PDF layout with available static pressure and friction rate calculation ("the wedge"), total effective length of the longest duct run, duct type, material, and sized dimensions for every run

Sample Manual D Report with fictional data. All personal details shown are fake.

What it covers

  • Available static pressure and friction rate calculation ("the wedge")
  • Total effective length of the longest duct run
  • Duct type, material, and sized dimensions for every run
  • Overall design result and revision notes

Who needs a Manual D Report?

HVAC contractors
Duct designers
Building departments
Homeowners (new construction/replacement systems)

Create your Manual D Report with CertBox

1

Fill in the form

Pick Manual D Report from the list, fill in the fields on your phone.

2

Compliance checks run

Built-in validation catches missing fields and out-of-range readings.

3

PDF generated instantly

Professional PDF ready to share via secure link or download.

Frequently asked questions about Manual D Report

What is "the wedge" in Manual D?
The wedge is the target friction rate range — 0.06 to 0.18 in. w.c. per 100 ft — that keeps duct sizing realistic. Friction rate is calculated as (available static pressure × 100) ÷ total effective length of the longest run. A rate outside the wedge means the design needs revision before the ducts are installed.
How does Manual D relate to Manual J and Manual S?
Manual J calculates the heating/cooling loads for the building. Manual S selects equipment matched to those loads. Manual D then designs the duct system to deliver the equipment’s design airflow to each room without excessive pressure drop or noise.
