Structured Cabling / Low-Voltage Certification

This report certifies the testing of a structured cabling installation — copper or fiber — against the applicable TIA category and link performance limits. It records cable and connector types, the tester used, and the pass/fail result for each link.

ANSI/TIA-568 series (structured cabling), ANSI/TIA-606 (labeling); pass/fail limits are category- and edition-specificValid: One-off (no expiry)

No credit card required. Set up in 30 seconds.

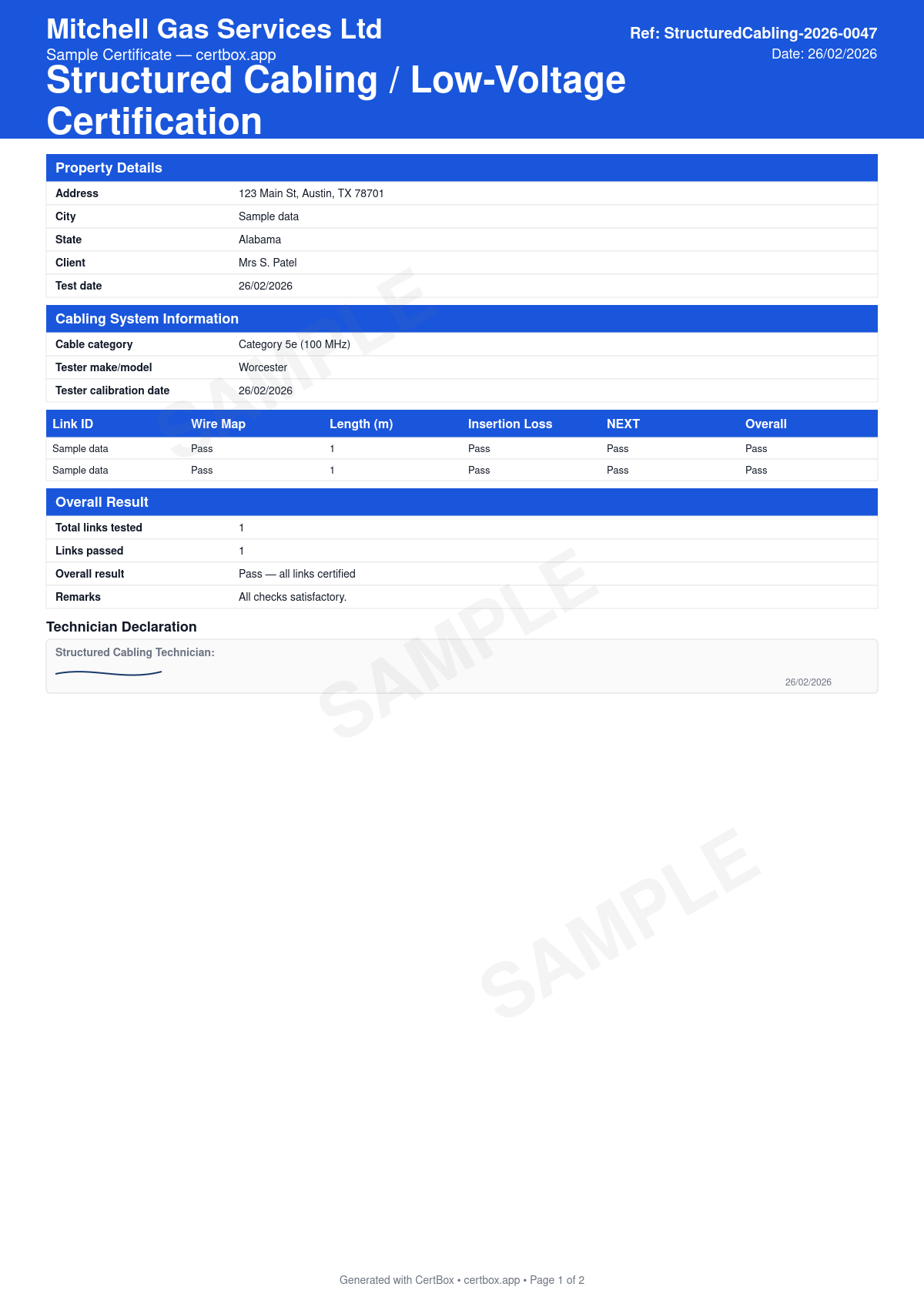

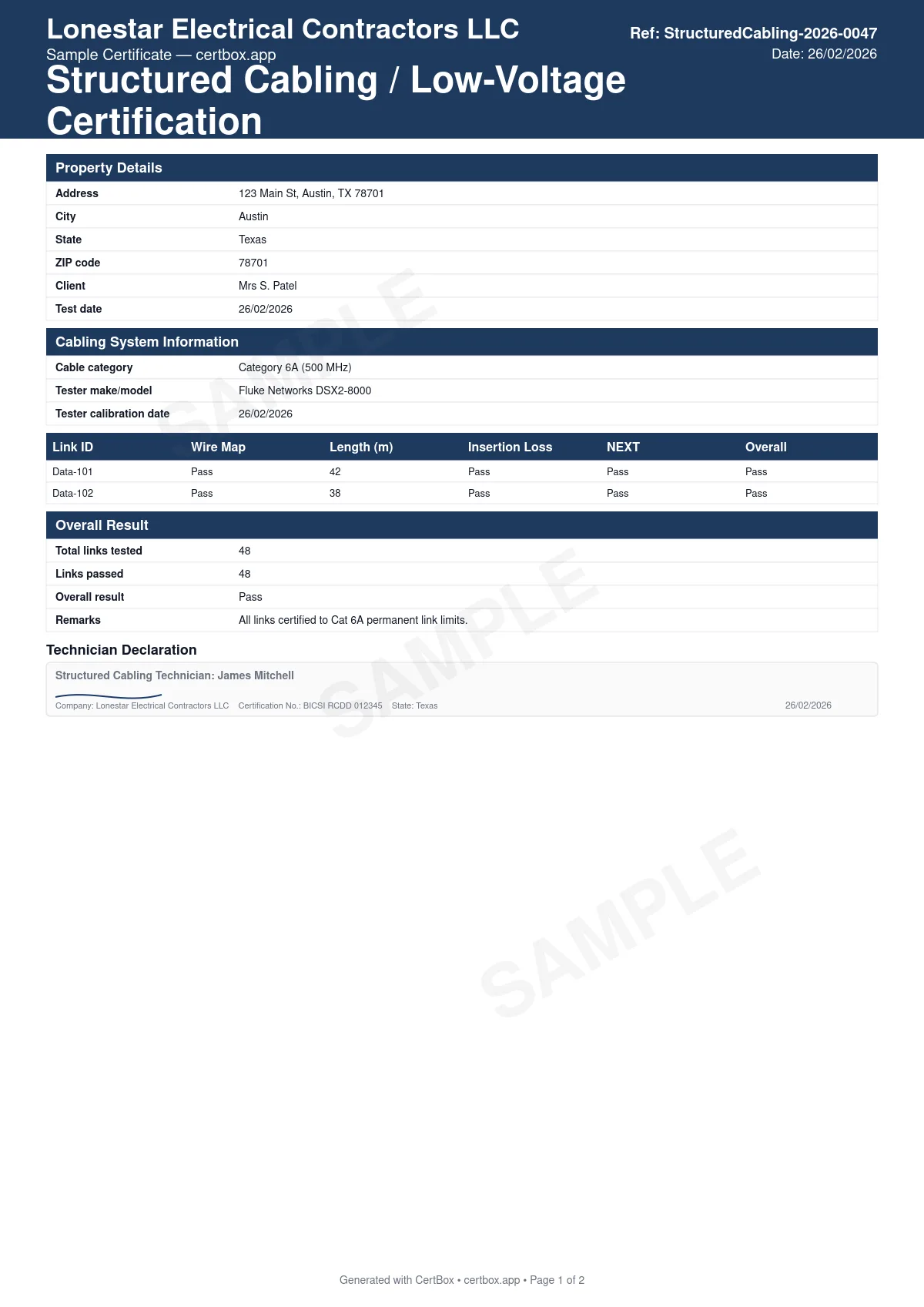

Sample Structured Cabling certificate

Sample Structured Cabling / Low-Voltage Certification certificate created with CertBox, showing the professional PDF layout with cable category and connector type, permanent link or channel tested, test instrument and settings

Sample Structured Cabling with fictional data. All personal details shown are fake.

What it covers

  • Cable category and connector type
  • Permanent link or channel tested
  • Test instrument and settings
  • Length, wire map and performance results
  • Fiber loss and OTDR results where applicable
  • Pass/fail per link

Who needs a Structured Cabling?

Low-voltage and data cabling technicians
Network integrators
Electrical contractors
Facility managers

Create your Structured Cabling with CertBox

1

Fill in the form

Pick Structured Cabling from the list, fill in the fields on your phone.

2

Compliance checks run

Built-in validation catches missing fields and out-of-range readings.

3

PDF generated instantly

Professional PDF ready to share via secure link or download.

Frequently asked questions about Structured Cabling

What standard governs structured cabling testing?
The ANSI/TIA-568 series defines performance categories and test limits for copper and fiber structured cabling. The exact pass/fail thresholds depend on the cable category (for example Cat 6 vs Cat 6A) and the edition in force, so this report captures the standard and limits used rather than asserting one universal figure.
Do I test the permanent link or the channel?
Both are defined in TIA-568. The permanent link excludes patch cords and is the usual acceptance test for an installed run; the channel includes patch cords and represents the end-to-end connection.
